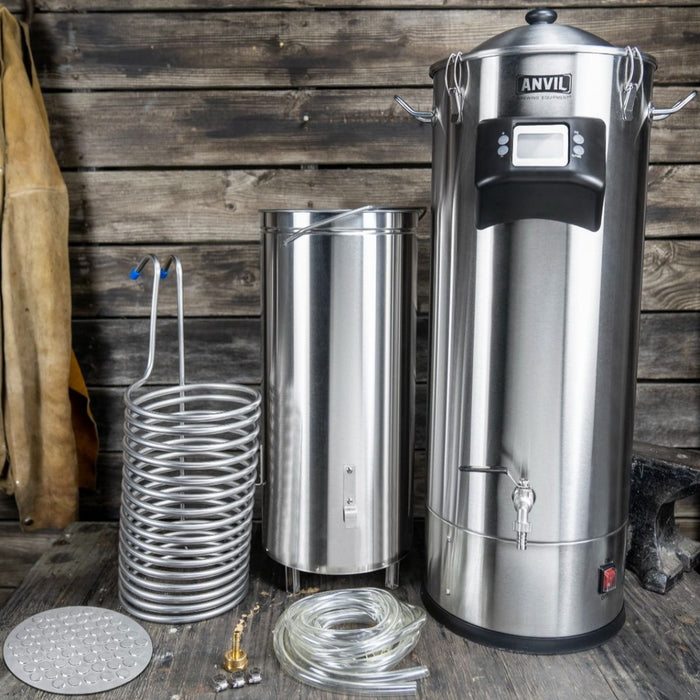

ANVIL Foundry™ 10.5 Gallon All-In-One Electric Brewing System w/ Pump

Out of Stock
$524.99
& Free Shipping Details
+ -

Product details

The ANVIL Foundry™ is the most versatile all-in-one brewing system available, at 10.5 gallons it is perfect for 5 - 6.5-gallon batches. From the triple element low watt density dual voltage heaters for blazing fast heating speeds to the unique grain basket, you won't find a more powerful feature-rich product.

Included Recirculation Pump Kit:

The Recirculation Pump Kit for the Anvil Foundry Brewing System comes with everything you need to start recirculating! Recirculating during the mash can help increase efficiency, extracting more sugars from the grain. This kit includes a perforated disk that wort is run through, helping to clarify it. It also comes with a flow clamp and tubing to hook the system up to the Foundry. Get the most out of your Foundry system with the recirculation pump kit!

ANVIL Foundry™ Key Features:

  • Recirculating Pump Kit included
  • Switchable Between 120V 1600W, 13A and 240V 2800W, 12A for Faster Heating & Better Boils.
  • Large Capacity Increases Efficiency and Grain Capacity.
  • Double Wall Insulation Maintains Mash Temps and Increases Heating Speeds.
  • Ultra-Low Watt Density, Triple Element Heaters - Won't Scorch.
  • Linear Digital Power Control and Solid-State Switching for Fine-Tuning your Boil.
  • Turbo 500 Distillation Ready- refer to the manual for more info.
  • Includes High Capacity Stainless Immersion Chiller with Hoses & Fittings.
  • External Pump Won't Plug and is Easy to Clean. No Need to Disassemble Entire Unit! Use for Other Pumping Needs too.

Additional information

Support Documents - Instructions Click here for instructions
SKU

42952

Due to Extended Supplier delays on certain products. Please allow 2-6 weeks for delivery, as this product ships directly from the manufacturer. BLICHMANN ENGINEERING & ANVIL BREWING ARE EXPERIENCING EXTENDED SUPPLIER DELAYS ON CERTAIN PRODUCTS. Express shipping options are not available.

Dimensions:

  • Tank Diameter = 12.5 inches
  • Distance Across the Handles = 17 inches
  • Height of Base Unit = 29.75 inches
  • Lid = 3.25 inches
  • Total Height = 33 inches
  • Spigot Height from Base = 7 inches
  • Shipping Weight = 38 lbs

Wattage:

  • 120V = 1600 watts
  • 240V = 2800 watts

Recirculation Pump Kit Key Features:

  • Anvil Recirculation Pump
  • 4 ft. of 1/2 in. ID Silicone Hose
  • 4 Hose Clamps
  • Flow Clamp
  • Stainless Return Tube
  • Perforated Disc
  • Eye Bolt & Nuts for Eye Bolt

Customer Reviews

Based on 47 reviews
87%
(41)
9%
(4)
4%
(2)
0%
(0)
0%
(0)
J
John S.

ANVIL Foundry™ 10.5 Gallon All-In-One Electric Brewing System w/ Pump

S
Scott K.
Great

Awesome!!

E
Ed
I love it!!

I brewed my first couple of batches in pots and was immediately, hooked and ready to upgrade. After watching many reviews of different all in one systems, I chose Anvil. I have brewed 3 batches so far and it is perfect.

The wort chiller gets my wort down from 212 to 70 in 40 minutes. The recirculating pump works like a charm, although I did buy a clamp to control the flow because I didn’t like the one it came with.

It’s so easy to clean I haven’t used the brew bag I bought. And the controls are easy and comprehensive.

I have brewed outside in 60 degrees with a cool breeze and it can maintain a rigorous boil.

I totally recommend it.

M
Michael E.
Honestly, I wish I’d done this sooner.

I had one of those standard two-tier converted keg RIMS systems. It was huge and, tho I had fun brewing with other people on a split batch, I brewed less than I liked because it was such a pain to work with. This thing is a dream come true by comparison.

D
Dean L.
Overall good but needs some improvement

I’ve brewed 4 batches on the Anvil system ( with Recirculation option) . I like the ability to control the mash temperature ( ex. step mash) compared to my cooler system. The main negative is efficiency. I average 62% on the Anvil All-In-One compared to about 70% for my cooler system. Apparently they made some “improvement” for stuck mashes by adding holes to the side of the grain basket ( I've had them anyway). As a result the grain bed channels to the side of the basket and the main grain bed does not get rinsed very well when drained. I assume this is the main reason for the low efficiency. They sell an insert to cover up the holes on the side of the basket ( cost about $45 ) but I would prefer to just have the previous design with no holes on the side OR include the insert with the original system purchase. On the issue of stuck mash I think the main cause is the flow rate on the recirculation system. It is very hard to control and throttle down with the flow control clamp they provide. I will be adding my own ball valve on the recirculation return to remedy that.
