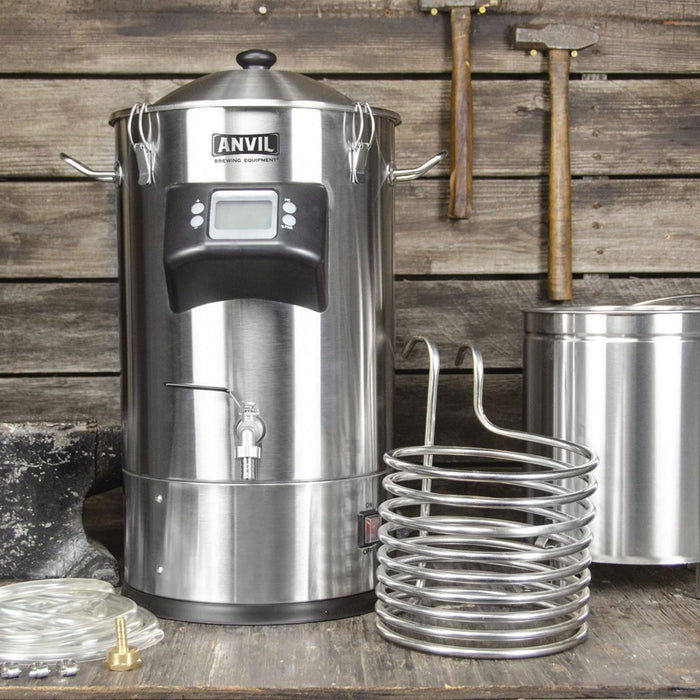

ANVIL Foundry™ 6.5 Gallon All-In-One Electric Brewing System showing individual components: grain basket, immersion chiller and tubing are next to the main unit

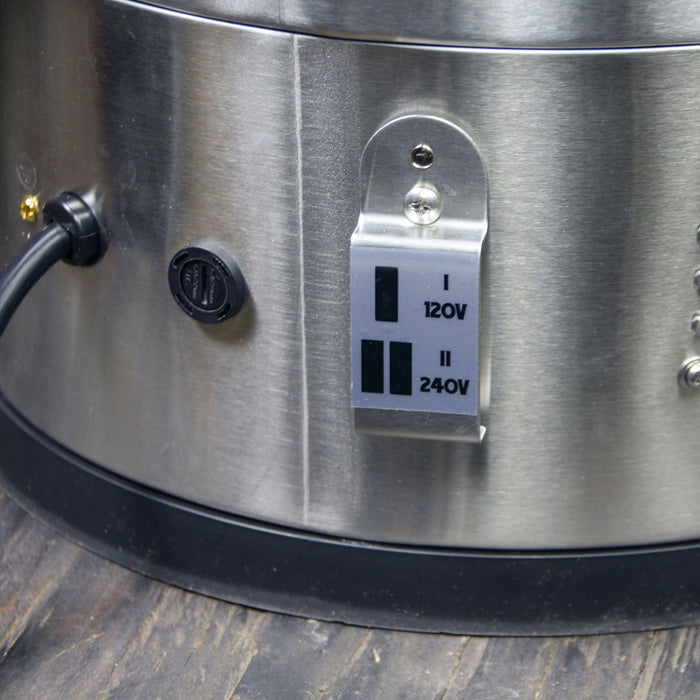

Close-up view of the 120 volt / 240 volt power switch

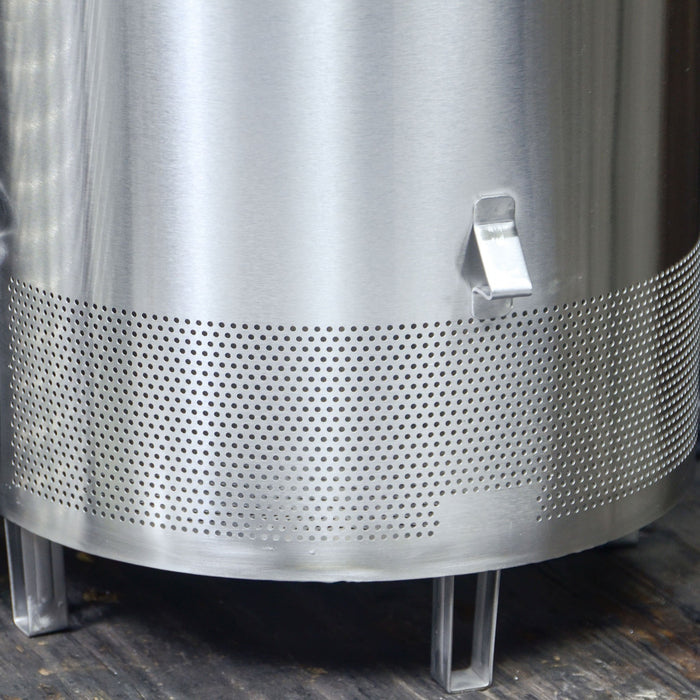

Detail view of the grain basket
ANVIL Foundry™ 6.5 Gallon All-In-One Electric Brewing System w/ Pump
ANVIL Foundry™ 6.5 Gallon All-In-One Electric Brewing System w/ Pump
ANVIL Foundry™ 6.5 Gallon All-In-One Electric Brewing System w/ Pump
ANVIL Foundry™ 6.5 Gallon All-In-One Electric Brewing System w/ Pump

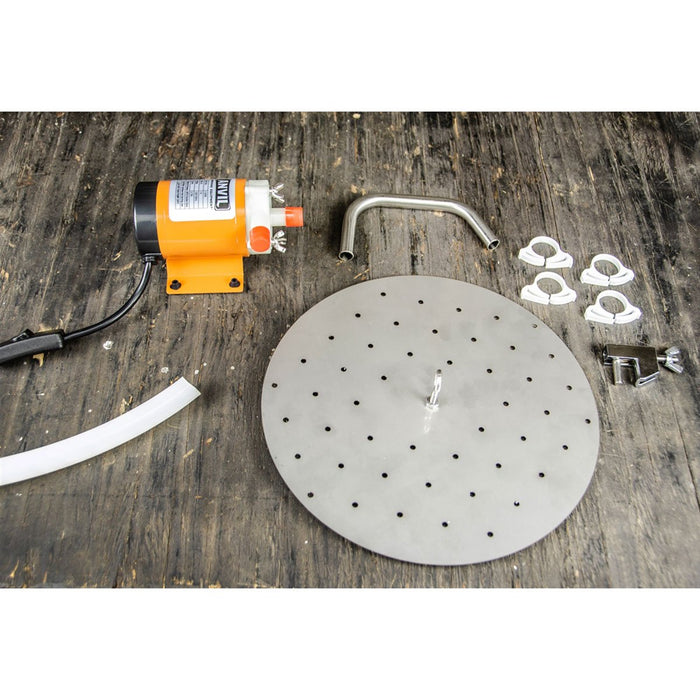

ANVIL Foundry Recirc pump kit

ANVIL Foundry™ 6.5 Gallon All-In-One Electric Brewing System w/ Pump

Out of Stock
$493.99
Standard Shipping Rates ApplyDetails
+ -

Product details

The ANVIL Foundry™ is the most versatile all-in-one brewing system available at 6.5 gallons it is perfect for 2.5 - 3 gallon batches. From the triple element low watt density dual voltage heaters for blazing fast heating speeds to the unique high flow grain basket, you won't find a more powerful feature-rich product.

Included Recirculation Pump Kit:

The Recirculation Pump Kit for the Anvil Foundry Brewing System comes with everything you need to start recirculating! Recirculating during the mash can help increase efficiency, extracting more sugars from the grain. This kit includes a perforated disk that wort is run through, helping to clarify it. It also comes with a flow clamp and tubing to hook the system up to the Foundry. Get the most out of your Foundry system with the recirculation pump kit!

ANVIL Foundry™ Key Features:

  • Recirculating Pump Kit included
  • Switchable Between 120V 1600W, 13A and 240V 2800W, 12A for Faster Heating & Better Boils.
  • Unique High Flow Grain Basket with 150% More Perforations to Virtually Eliminate Stuck Mashes.
  • Large Capacity Increases Efficiency and Grain Capacity.
  • Double Wall Insulation Maintains Mash Temps and Increases Heating Speeds.
  • Ultra-Low Watt Density, Triple Element Heaters - Won't Scorch.
  • Linear Digital Power Control and Solid-State Switching for Fine Tuning your Boil.
  • Turbo 500 Distillation Ready - refer to manual for more info.
  • Includes High Capacity Stainless Immersion Chiller with Hoses & Fittings.
  • External Pump Won't Plug and is Easy to Clean. No Need to Disassemble Entire Unit! Use for Other Pumping Needs too.

Additional information

Support Documents - Instructions Click here for instructions
SKU

42951

Due to Extended Supplier delays on certain products. Please allow 2-6 weeks for delivery, as this product ships directly from the manufacturer. BLICHMANN ENGINEERING & ANVIL BREWING ARE EXPERIENCING EXTENDED SUPPLIER DELAYS ON CERTAIN PRODUCTS. Express shipping options not available.

Dimensions:

  • Tank Diameter = 12.5 inches
  • Distance Across the Handles = 17 inches
  • Height of Base Unit = 21.25 inches
  • Lid = 3.25 inches
  • Total Height = 24.5 inches
  • Spigot Height from Base = 7 inches
  • Shipping Weight = 23 lbs

Wattage:

  • 120V = 1600 watts
  • 240V = 2800 watts

Recirculation Pump Kit Key Features:

  • Anvil Recirculation Pump
  • 4 ft. of 1/2 in. ID Silicone Hose
  • 4 Hose Clamps
  • Flow Clamp
  • Stainless Return Tube
  • Perforated Disc
  • Eye Bolt & Nuts for Eye Bolt
CONTINUE READING

Customer Reviews

Based on 8 reviews
88%
(7)
13%
(1)
0%
(0)
0%
(0)
0%
(0)
W
William L.B.
Fast Delivery

Ordering experience was great and the delivery of my equipment was faster then what I was prepared for. Great Job.

S
Stephen K.
This product upped my game!

I have brewed beer for over 25 years, moving from extract to all grain. Like most, I used gas burners and separate vessels for each step. Mash temps fluctuated and I never thought about wort recirculation. I wanted to up my game but didn't want to spend thousands of dollars doing it. The Anvil Foundry was the answer. This easy to use system provides the ability to set the mash temp and step mash pretty easily. The pump system simply and efficiently recirculates the wort. The mash pipe makes sparging possible and also makes it easier to dispose of the spent grain. The included wort chiller works better than my old copper standby. Cleanup is easier because there is only one kettle to clean instead of a mash tun and a boiling pot. Even with the 110 volt setup the unit heats reasonably fast. The 6.5 gallon version is ideal for 2.5-3 gallon batches, which I now brew instead of larger amounts. I look forward to brew day more than before because I can brew better beer more easily than before using the Anvil. My next project is fermentation temp control.

B
Bruce D.
Anvil 6.5

I've been homebrewing since the eary 90s. I've had several different all grain setups most having a 10-11 gallon batch size.

I've been thinking I should go to smaller batches for some time. The Anvil 6.5 is just the ticket. I've used it twice and both beers came out very nice. I would recommend using the 240v if you are able to. The 240v will shorten your brew day considerably. Cleanup is fast too. Nice system that is easy to use.

K
Kelly D.
Anvil 6.5

More like 4.5 stars. Love it. Would be better with some gaskets around the housing

A
Adam D.
Yes Anvil

Brewing on an Anvil Foundry 6.5 is a dream come true. Holds Mash temp, easy Sparge and holds a nice Boil when power is set to 80%. It completes my basement Home Brew Pub. Cheers!
